Trench Technology

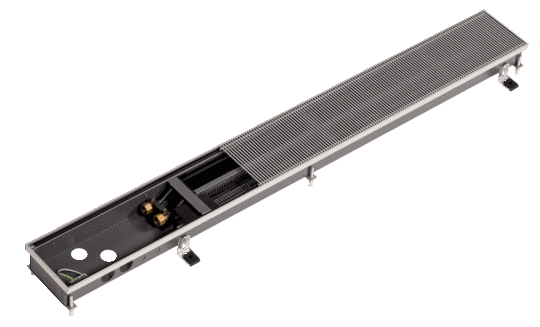

Katherm QK nano
Article no.:
44217074311324
Overview
- All factory-fitted components are wired to terminals
- Compact connecting terminal strip
- Convenient/space-saving connection area
- Power supply via on-site power supply components
- Control by Kampmann room thermostats or on-site controls
The Eurokonus valve connection enables the Katherm QK nano to be quickly and easily installed on site. In addition, height adjustment feet and raised floor height adjustment feet are supplied as standard to further reduce the installation time and thus the cost.
- 24 V electromechanical
- 230 V electromechanical including power unit and terminal block or KaControl incl. power unit, PCB and connection box
- For valves and electrical components
- With cover for visual protection and to protect against dirt
- Prevents damage to the convector when installing the valves or threaded connectors
- For the simple fixing of the floor trench
- With rubber underlay for acoustic decoupling
Calculate performance data
Sound power octave spectrum
The sound power is determined depending on the use according to DIN EN ISO 3741 (in the echo chamber), according to DIN EN ISO 3744 (in the low-reflective half-space) or according to DIN EN ISO 9614 (intensity method).
Oktave Spektrum
EPD data
Item number-specific LCA data based on verified EPD according to EN 15804, which is available for download at The International EPD System. Separate subdivision of life cycle modules available online via button "EPD data sheet". The environmental impacts of module B refer to 1 year of operation. A: Product and construction process stage - B: Use stage - C: End of life stage - D: Benefits and loads beyond the system boundary
| Impact Category | A | B | C | D |
|---|---|---|---|---|
| GWP - Fossil | kg CO₂ eq | 2.85E+01 | 2.26E+00 | 1.51E+00 | -1.26E+01 |
| GWP - Biogenic | kg CO₂ eq | 1.02E-01 | 3.23E-03 | 1.90E-04 | -2.10E-02 |
| GWP - Luluc | kg CO₂ eq | 1.04E-01 | 1.32E-02 | 1.19E-04 | -6.95E-02 |
| GWP - Total | kg CO₂ eq | 2.87E+01 | 2.27E+00 | 1.51E+00 | -1.28E+01 |
| ODP | kg CFC-11 eq | 8.01E-07 | 9.92E-08 | 2.73E-08 | -3.23E-07 |
| AP | mol H+ eq | 3.35E-01 | 2.40E-02 | 6.77E-04 | -1.98E-01 |
| EP - Freshwater | kg P eq | 2.74E-02 | 1.76E-03 | 3.08E-05 | -1.65E-02 |
| EP - Marine | kg N eq | 6.38E-02 | 5.40E-03 | 2.31E-04 | -1.66E-02 |
| EP - Terrestrial | mol N eq | 4.03E-01 | 2.97E-02 | 2.36E-03 | -1.97E-01 |
| POCP | kg NMVOC | 1.50E-01 | 8.71E-03 | 7.62E-04 | -7.84E-02 |
| ADPE | kg Sb eq | 2.95E-03 | 2.49E-04 | 5.65E-07 | -2.03E-03 |
| ADPF | MJ | 3.70E+02 | 5.17E+01 | 1.60E+00 | -1.55E+02 |
| WDP | m³ depriv. | 7.54E+00 | 3.80E-01 | 6.49E-02 | -2.86E+00 |
| PM | disease inc. | 2.35E-06 | 9.08E-08 | 1.01E-08 | -1.03E-06 |
| IR | kBq U-235 eq | 2.96E+00 | 1.65E+00 | 7.41E-03 | -1.04E+00 |
| ETP - FW | CTUe | 4.38E+02 | 4.19E+01 | 1.16E+01 | -2.20E+02 |
| HTP - C | CTUh | 1.54E-07 | 4.62E-09 | 2.48E-10 | -7.01E-08 |
| HTP - NC | CTUh | 3.17E-06 | 2.55E-07 | 2.79E-09 | -2.15E-06 |
| SQP | Pt | 2.41E+02 | 2.85E+01 | 1.62E+00 | -6.59E+01 |
| PERE | MJ | 7.18E+01 | 1.17E+01 | 9.21E-02 | -2.49E+01 |
| PERM | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| PERT | MJ | 7.18E+01 | 1.17E+01 | 9.21E-02 | -2.49E+01 |
| PENRE | MJ | 3.70E+02 | 5.17E+01 | 1.60E+00 | -1.55E+02 |
| PENRM | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| PENRT | MJ | 3.70E+02 | 5.17E+01 | 1.60E+00 | -1.55E+02 |
| SM | kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| RSF | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| NRSF | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| FW | m³ | 2.69E-01 | 2.78E-02 | 1.66E-03 | -9.86E-02 |
| HWD | kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| NHWD | kg | 1.57E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| RWD | kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| CRU | kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| MFR | kg | 0.00E+00 | 0.00E+00 | 4.83E+00 | 0.00E+00 |
| MER | kg | 0.00E+00 | 0.00E+00 | 5.76E-01 | 0.00E+00 |
| EE (Electrical) | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| EE (Thermal) | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| *GWP-GHG | kg CO₂ eq | 2.88E+01 | 2.28E+00 | 1.51E+00 | -1.28E+01 |
Accessories
Control accessories electromechanical 24 V
KaControl control electronics
for external installation outside the trench heater, 24 V Surface-mounted, Protection class IP 54, Type 3231132
Suitable for: EC units, electromechanical 24 V, 6 Units Katherm Trench Technology
Suitable for: EC units, electromechanical 24 V, 6 Units Katherm Trench Technology
Article no.:
196003231132
Clock thermostat
Heating/Cooling, 2- and 4-pipe, continuously variable, with LCD operating menu and integrated timer program, heating/cooling changeover by means of external potential-free contact (low voltage), 24 V Actuator, Open/Closed, 1 W, flush-mounted, Protection class IP 30, Colour similar to RAL 9010 pure white, Type 30456
Only in conjunction with valves/valve kits!
optional connectible, remote sensor art. no. 196000148921
can optionally be connected, clip-on sensor art. no. 196000148922
Suitable for: EC units, electromechanical 24 V/230 V, 5 Katherm HK, Katherm HK 320 E, Katherm QK or Katherm QK nano Trench Technology, 5 PowerKon nano Perimeter Heating
Only in conjunction with valves/valve kits!
optional connectible, remote sensor art. no. 196000148921
can optionally be connected, clip-on sensor art. no. 196000148922
Suitable for: EC units, electromechanical 24 V/230 V, 5 Katherm HK, Katherm HK 320 E, Katherm QK or Katherm QK nano Trench Technology, 5 PowerKon nano Perimeter Heating
Article no.:
196000030456

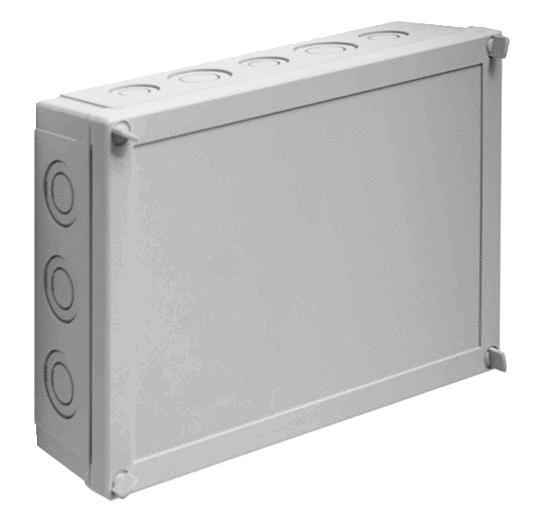

KaControl control electronics
in a wall-mounted housing, 230 V AC, 24 V Surface-mounted, Protection class IP 65, Colour light grey, made of plastic, Type 3231136
Suitable for: 10 Units
Suitable for: 10 Units
Article no.:
196003231136
KaControl control electronics
in a wall-mounted housing, 230 V AC, 24 V Surface-mounted, Protection class IP 65, Colour light grey, made of plastic, Type 3231137
Suitable for: 10 Units
Suitable for: 10 Units
Article no.:
196003231137
Power supply unit
for external installation outside the trench heater, 85 - 264 V AC, 24 V DC, 36 W, on DIN rail, Protection class II
Suitable for: EC units, electromechanical 24 V, 1 Katherm QK Trench Technology, 3 Katherm QK nano Trench Technology, 3 PowerKon nano Perimeter Heating
Suitable for: EC units, electromechanical 24 V, 1 Katherm QK Trench Technology, 3 Katherm QK nano Trench Technology, 3 PowerKon nano Perimeter Heating
Article no.:
196901335152
Power supply unit
for external installation outside the trench heater, 86 - 264 V AC, 24 V DC, 47 Hz, 60 W, on DIN rail, Protection class II
Suitable for: EC units, electromechanical 24 V, 2 Katherm QK Trench Technology, 5 Katherm QK nano Trench Technology, 6 PowerKon nano Perimeter Heating
Suitable for: EC units, electromechanical 24 V, 2 Katherm QK Trench Technology, 5 Katherm QK nano Trench Technology, 6 PowerKon nano Perimeter Heating
Article no.:
196901338401
Power supply unit
for external installation outside the trench heater, 86 - 264 V AC, 24 V DC, 47 Hz, 92 W, on DIN rail, Protection class II
Suitable for: EC units, electromechanical 24 V, 4 Katherm QK Trench Technology, 7 Katherm QK nano Trench Technology, 10 PowerKon nano Perimeter Heating
Suitable for: EC units, electromechanical 24 V, 4 Katherm QK Trench Technology, 7 Katherm QK nano Trench Technology, 10 PowerKon nano Perimeter Heating
Article no.:
196901338402
Valve kits

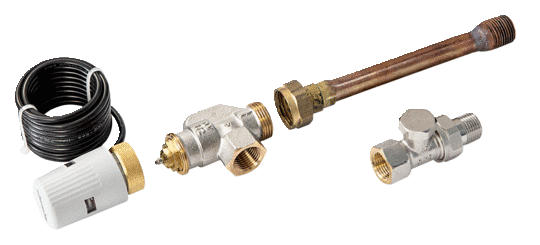

Valve kit
with pre-settable valve body, return shut-off valve and matching spacer, 24 V actuator, kvs value 1 m³/h, Max. operating pressure 10 bar
Suitable for: DN 15
Suitable for: DN 15
Article no.:
194000442100
Connection accessories

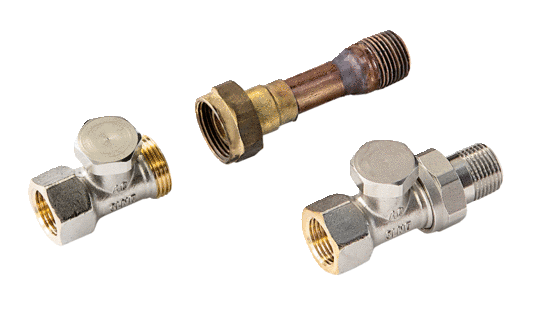

Connection set
with two return shut-off valves and matching adapter; when using the Katherm QK nano with a central manifold
Article no.:
194000442101
Installation covers
Installation cover
to protect trench during installation, factory-fitted, grilles are packed separately
price per m
Suitable for: Width 165 mm
price per m
Suitable for: Width 165 mm
Article no.:
194000101916
