Fan Coils
Venkon
Fan coils, recirculating air. Heating, cooling and filtering for maximum comfort.
Overview
Thanks to energy-saving EC technology, the Venkon Fan Coil meets all expectations for a quiet environment. Quiet to concentrate on the essentials. Leading the market in quiet yet powerful performance at higher speeds.
According to VDI 6022, the Venkon shines with closed-porous surfaces and best cleaning possibilities as well as excellent filter qualities (with optional ePM10 > 50 % (formerly M5) filter).
With KaControl room automation, you achieve maximum energy efficiency. As an individual room controller or networked with a building automation system, KaControl controls the wide range of Kampmann systems - for an individual feel-good climate.
Thanks to separate ventilation and temperature control with the Hybrid ECO system from Kampmann! With the Venkon Fan Coil as a decentralised device, you save costs and space during installation and benefit from energy-saving operation.
Our products are suitable for use with refrigerants. Make use of the natural refrigerant CO2 with low global warming potential
Plan with the Venkon and face peak loads in midsummer as well as in deepest winter calmly. The new motors with progressive power characteristics provide the decisive buffer for extreme weather conditions.
Concealed in shallow ceilings or wall-voids or exposed with space-saving aesthetically designed casings, we create your special solution.
We look at the environmental impact of our products over the entire life cycle – “cradle to cradle”! This results in Environmental Product Declarations (EPD). EPDs can be easily submitted for all common building sustainability certification systems, such as DGNB, BREEAM or LEED, and are available in the Download area. In addition, the product is registered in the building products platform DGNB Navigator.
Heat Pump Ready
This product is suitable for use with a heat pump or other low temperature system. Reduce your energy requirements, operating costs and emissions with our Heat Pump ready range of products. And make you and your customers less dependent on fossil fuels.
We have appropriate heat pump solutions for many applications, from industrial sheds, office buildings, hotels to private homes.
→ Discover more- Lowest noise at low speeds and high power at high speeds
- Flow-optimised blow-out behaviour due to blow-out grille
- Change of the air outlet angle, also retrofittable easily
- Wired ready for connection
- Easily accessible for maintenance thanks to removable cover
- Also available as remote control box with 2.5 m long cable
- Can be easily and conveniently removed for maintenance/cleaning
- Copper-aluminium
- Optimised air and water-side flow for maximum heat and cold dissipation
- Maintenance-friendly filter removal in any installation position
- Filter washable and therefore reusable
- Wired ready for connection
- Easily accessible for maintenance due to removable cover
- Mounting via Velcro strips for easy removal and handling on site
- With anti-rotation device to prevent damage to the convector when screwing in the valves
- Various valve kits (optional) permanently mounted on the device and pressed off on the water side
- Actuators (optional) permanently connected and wired to the valve kit
- Simple assembly and disassembly without tools possible
- In slim design

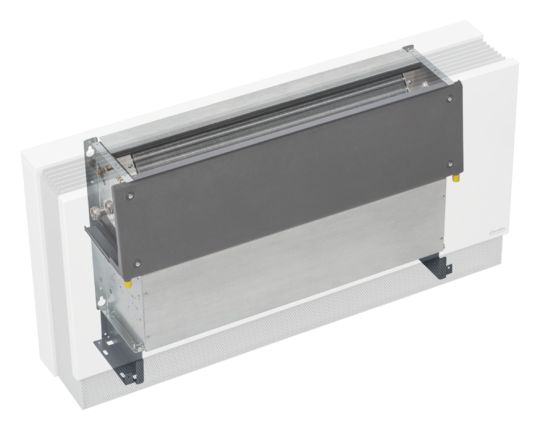

Visually slimline Venkon casing in 2 colours, powder-coated sheet steel. RAL 9006 (white aluminium) air intake and air outlet grilles. The remaining casing is painted in RAL 9016 (traffic white).
