Unit Heaters model year 2020
product logo

TOP

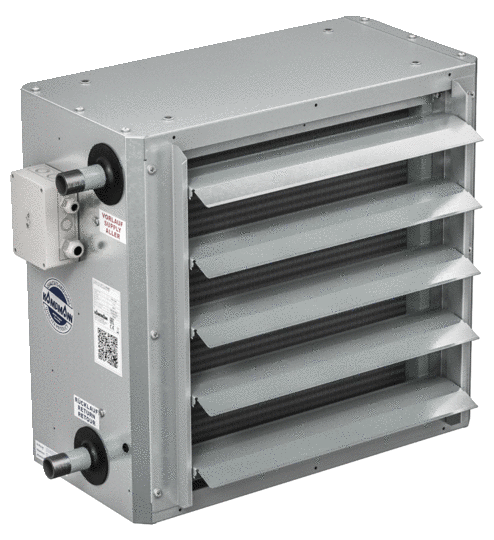

Wall and ceiling-mounted units – the warm air solution for almost all requirements.
TOP

Overview

TOP

References

Stadtwerke Traunreut, Traunreut

Stadtwerke Traunreut, Traunreut

continue
Volkswagen Qualification Centre, Freising

Volkswagen Qualification Centre, Freising

continue
Capron GmbH, Neustadt

Capron GmbH, Neustadt

continue
Hilti, Bebra

Hilti, Bebra

continue
Busch Car Dealership, Beverstedt-Lunestedt

Busch Car Dealership, Beverstedt-Lunestedt

continue

Kampmann Today

Product Selection

Your selection     Copper/aluminium Electro-mechanical Reset all

Your search resulted in 24 hits

Model size

Dimensions

(mm)

Heat output1)

(kW)

Heat exchanger model Heat exchanger performance Fan version Control option Calculation
4 540 x 500 x 320 6.8 – 12.9 Copper/aluminium Low, heat exchanger code no. 20 EC fan, 230 V, high speed Electro-mechanical Calculate
4 540 x 500 x 320 6.5 – 11.5 Copper/aluminium Low, heat exchanger code no. 20 EC fan, 230 V, reduced speed Electro-mechanical Calculate
4 540 x 500 x 320 7.3 – 15.2 Copper/aluminium Medium, heat exchanger code no. 30 EC fan, 230 V, high speed Electro-mechanical Calculate
4 540 x 500 x 320 7.0 – 13.3 Copper/aluminium Medium, heat exchanger code no. 30 EC fan, 230 V, reduced speed Electro-mechanical Calculate
4 540 x 500 x 320 6.4 – 18.5 Copper/aluminium High, heat exchanger code no. 40 EC fan, 230 V, high speed Electro-mechanical Calculate
4 540 x 500 x 320 5.7 – 15.4 Copper/aluminium High, heat exchanger code no. 40 EC fan, 230 V, reduced speed Electro-mechanical Calculate
5 640 x 600 x 320 7.1 – 23.9 Copper/aluminium Low, heat exchanger code no. 20 EC fan, 230 V, high speed Electro-mechanical Calculate
5 640 x 600 x 320 8.3 – 18.6 Copper/aluminium Low, heat exchanger code no. 20 EC fan, 230 V, reduced speed Electro-mechanical Calculate
5 640 x 600 x 320 6.8 – 28.7 Copper/aluminium Medium, heat exchanger code no. 30 EC fan, 230 V, high speed Electro-mechanical Calculate
5 640 x 600 x 320 8.4 – 21.6 Copper/aluminium Medium, heat exchanger code no. 30 EC fan, 230 V, reduced speed Electro-mechanical Calculate
5 640 x 600 x 320 4.5 – 37.0 Copper/aluminium High, heat exchanger code no. 40 EC fan, 230 V, high speed Electro-mechanical Calculate
5 640 x 600 x 320 6.6 – 26.0 Copper/aluminium High, heat exchanger code no. 40 EC fan, 230 V, reduced speed Electro-mechanical Calculate
1)At LPHW 75/65 °C, tL1 = 20 °C
