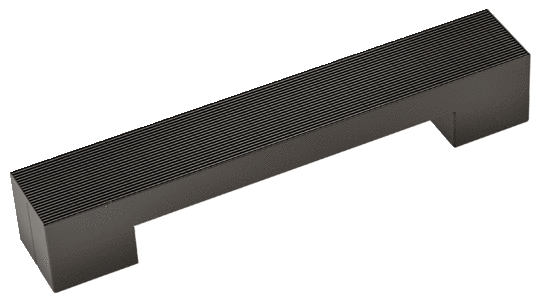

PowerKon nanoFree-standing convector with EC tangential fan-assisted convection.
With the market-leading technology of our trench heating units, we are combining performance and design in a freestanding radiator.
Whether for new build or refurbishments, the interaction of quietly operating EC tangential fan and high-output copper/aluminium coil delivers an optimum indoor climate with high heat output and low sound impact.
The flow-optimised air guidance, with a façade-side air outlet, ensures maximum comfort in the room. With guaranteed output measured according to EN 16430.
PowerKon nano units represent an attractive eye-catching feature in front of full-height glazing. The ideal solution when an elegant statement is to be made.
Flat, delicate, restrained! The FineLine grille was developed specifically for our smallest recirculating air fan convectors and creates a harmonious appearance that blends perfectly with every interior architectural style.
Both the FineLine grille as well as the casing are powder-coated in a RAL colour of your choice – for a complete look.
- Standard DB703
- Other colours on request, example shown RAL 9016 (traffic white)
- For valves and electrical connections with cover for visual protection and to protect against dirt
- For precise routing of water and electrical lines
- Prevents damage to the convector when installing the valves or threaded connectors
- Electro-mechanical 24 V
ADAC Headquarters, Munich
ADAC Headquarters, Munichcontinue
Bolshevik Business Centre, Moscow
Bolshevik Business Centre, Moscowcontinue
Your search resulted in 5 hits
|Grille design||Grille finish||Control option||Calculation|
|950||321 – 851||Orthogonal grille||Steel, coated RAL 9006||Electro-mechanical 230 V||Calculate|
|1150||497 – 1317||Orthogonal grille||Steel, coated RAL 9006||Electro-mechanical 230 V||Calculate|
|1400||646 – 1713||Orthogonal grille||Steel, coated RAL 9006||Electro-mechanical 230 V||Calculate|
|1800||971 – 2574||Orthogonal grille||Steel, coated RAL 9006||Electro-mechanical 230 V||Calculate|
|2150||1221 – 3237||Orthogonal grille||Steel, coated RAL 9006||Electro-mechanical 230 V||Calculate|
1)At LPHW 75/65 °C, tL1 = 20 °C
