Trench Technology
Katherm QE
Article no.:
242211111129
Overview
- Stainless steel/zinc aluminium with continuously variable control of heating element and fan controlled by a 0-10 V signal
- Protection class IP 65
- Heating element factory-wired into control unit
- As visual protection of the connections
- With integral ventilation slot
The grille of the Katherm QE prevents contact with the coil. It is factory-fitted and can only be removed with a tool.
- With integral grille as a safety guard for an even airflow through the heating element, providing high heat outputs with low noise emissions continuously variable speed control via an external 0-10 V signal motor monitoring with internal fault processing
EPD data
Item number-specific LCA data based on verified EPD according to EN 15804, which is available for download at The International EPD System. Separate subdivision of life cycle modules available online via button "EPD data sheet". The environmental impacts of module B refer to 1 year of operation. A: Product and construction process stage - B: Use stage - C: End of life stage - D: Benefits and loads beyond the system boundary
| Impact Category | A | B | C | D |
|---|---|---|---|---|
| GWP - Fossil | kg CO₂ eq | 8.73E+01 | 8.50E+02 | 1.26E+00 | -5.06E+01 |
| GWP - Biogenic | kg CO₂ eq | 2.33E-01 | 5.13E-01 | 2.53E-04 | -1.46E-01 |
| GWP - Luluc | kg CO₂ eq | 9.23E-01 | 1.03E+00 | 1.27E-04 | -6.91E-01 |
| GWP - Total | kg CO₂ eq | 8.84E+01 | 8.52E+02 | 1.26E+00 | -5.14E+01 |
| ODP | kg CFC-11 eq | 2.05E-06 | 4.34E-05 | 1.17E-08 | -1.40E-06 |
| AP | mol H+ eq | 5.33E-01 | 2.17E+00 | 9.47E-04 | -3.26E-01 |
| EP - Freshwater | kg P eq | 4.87E-02 | 8.44E-02 | 3.33E-05 | -3.00E-02 |
| EP - Marine | kg N eq | 1.24E-01 | 6.05E-01 | 3.31E-04 | -4.75E-02 |
| EP - Terrestrial | mol N eq | 8.71E-01 | 6.85E+00 | 3.46E-03 | -4.75E-01 |
| POCP | kg NMVOC | 3.71E-01 | 1.99E+00 | 1.29E-03 | -2.24E-01 |
| ADPE | kg Sb eq | 1.58E-03 | 2.04E-03 | 5.76E-07 | -9.38E-04 |
| ADPF | MJ | 1.16E+03 | 2.21E+04 | 3.29E+00 | -6.74E+02 |
| WDP | m³ depriv. | 1.21E+01 | 3.56E+01 | 8.28E-02 | -4.24E+00 |
| PM | disease inc. | 6.47E-06 | 1.38E-05 | 2.22E-08 | -3.73E-06 |
| IR | kBq U-235 eq | 1.29E+01 | 7.60E+02 | 5.84E-03 | -8.16E+00 |
| ETP - FW | CTUe | 6.25E+02 | 1.44E+03 | 5.22E+00 | -2.59E+02 |
| HTP - C | CTUh | 3.67E-07 | 2.31E-07 | 1.86E-10 | -2.13E-07 |
| HTP - NC | CTUh | 2.81E-06 | 5.13E-06 | 2.74E-09 | -1.79E-06 |
| SQP | Pt | 4.62E+02 | 9.56E+03 | 4.83E+00 | -9.16E+01 |
| PERE | MJ | 3.15E+02 | 4.96E+03 | 7.29E-02 | -1.87E+02 |
| PERM | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| PERT | MJ | 3.15E+02 | 4.96E+03 | 7.29E-02 | -1.87E+02 |
| PENRE | MJ | 1.16E+03 | 2.21E+04 | 3.29E+00 | -6.74E+02 |
| PENRM | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| PENRT | MJ | 1.16E+03 | 2.21E+04 | 3.29E+00 | -6.74E+02 |
| SM | kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| RSF | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| NRSF | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| FW | m³ | 5.53E-01 | 5.55E+00 | 2.93E-03 | -2.76E-01 |
| HWD | kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| NHWD | kg | 5.05E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| RWD | kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| CRU | kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| MFR | kg | 0.00E+00 | 0.00E+00 | 1.65E+01 | 0.00E+00 |
| MER | kg | 0.00E+00 | 0.00E+00 | 4.21E-01 | 0.00E+00 |
| EE (Electrical) | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| EE (Thermal) | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| *GWP-GHG | kg CO₂ eq | 8.84E+01 | 8.52E+02 | 1.26E+00 | -5.14E+01 |
Accessories
Control accessories electromechanical 230 V

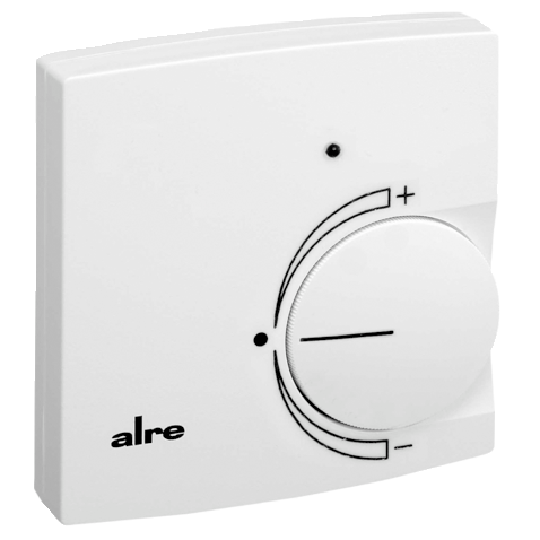

Room temperature controller
Heating/Cooling, with setpoint display by means of arrow indicators, for heating or cooling systems, 24 V AC/DC, 0 - 10 V, 50 Hz, Surface-mounted, Protection class III, Protection class IP 30, Temperature setting range 13 - 29 °C, Colour similar to RAL 9010 pure white, Type 146828
optional connectible, remote sensor art. no. 196000148921
Suitable for: 2/4-pipe version, 5 Katherm QE or Katherm HK 320 E Trench Technology
optional connectible, remote sensor art. no. 196000148921
Suitable for: 2/4-pipe version, 5 Katherm QE or Katherm HK 320 E Trench Technology
Article no.:
194000146928
Downloads
Declarations/Certificates
Certificate ISO 50001:2018
PDF
(194 kB)
Certificate ISO 9001:2008
PDF
(118 kB)
EPD Katherm QE 1700mm
PDF
(9.4 MB)
EPD Katherm QE 1250mm
PDF
(9.3 MB)
EPD Katherm QE 825mm
PDF
(9.3 MB)
EU Declaration of Conformity Katherm trench heating
PDF
(457 kB)
UKCA Declaration Katherm QE
PDF
(455 kB)
Digital EPD database Katherm QE 1700 mm
Cross-product information
Products
PDF
(10.7 MB)
Manuals
Katherm QE trench heating
PDF
(3.9 MB)
Technical catalogues
Katherm QE trench heating
PDF
(4.1 MB)
Installation plans
Verlegepläne Katherm QE elektromechanisch
PDF
(486 kB)
CAD-Drawings
Katherm QE, Kanalbreite 207 mm, Kanalhöhe 112 mm, Kanallängen 825- 1700 mm, Abmessungen [Inch]
PDF
(321 kB)
Katherm QE, Kanalbreite 207 mm, Kanalhöhe 112 mm, Kanallängen 825- 1700 mm, Abmessungen [mm]
PDF
(530 kB)
Katherm QE, Kanalbreite 207 mm, Kanalhöhe 112 mm, Kanallängen 825- 1700 mm, Abmessungen [Inch]
DWG
(438 kB)
Katherm QE, Kanalbreite 207 mm, Kanalhöhe 112 mm, Kanallängen 825- 1700 mm, Abmessungen [mm]
DWG
(436 kB)
BIM data (Building Information Modeling)
Katherm QE 1700 mm
RFA
(460 kB)
